QSK19
500 - 800 hp
> Water cooled exhaust manifold
> High Pressure Common Rail
> Low RPM
> High torque
> Heat exchanger or keel cooling

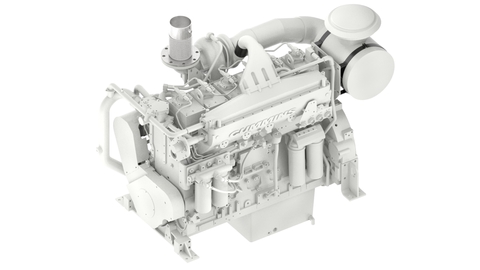

QSK19 has 6 cylinders in line with Modular High Pressure Common Rail Fuel System, which provides good fuel economy and low emissions. The air intake is turbocharged. Water cooled exhaust manifold lowers the surface temperature of the engine and ensures reliable operation. High torque gives good response when maneuvering and low rpm reduces noise and vibration levels. 24-volt electrical system with Nogva Motor Computer monitoring system. The Q-Series was launched in 2005, designed to meet current and future stringent environmental requirements.
Model |
Effect |
Engine rpm |
Rating |
Emission |
Datablad |
Tegning |
QSK19-M |
500 hp |
1800 rpm |
IMO Tier II | |||
QSK19-M |
600 hp |
1800 rpm |
IMO Tier II | |||
QSK19-M |
660 hp |
1800 rpm |
IMO Tier II | |||
QSK19-M |
750 hp |
1800 rpm |
IMO Tier II | |||
QSK19-M |
760 hp |
2100 rpm |
IMO Tier II | |||
QSK19-M |
800 hp |
2100 rpm |
IMO Tier II |
Technical details
Displacement | 18,9 liter |
Number of cylinders | 6 in-line |
Bore and stroke | 159 x 159 mm |
Compression ratio | 15:1 |
Fuel injection | High Pressure Common Rail |
Aspiration | Turbocharged and aftercooled |
Cooling system | Heat exchanger or keel cooling |
Weight (dry) | 2200 kg |
