KTA38-DM1
880 - 970 kW

> Unit injectors
> Low noise and vibrations

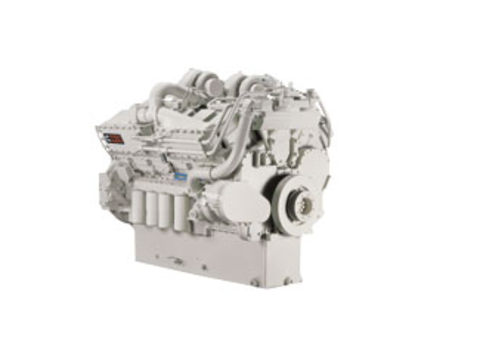

KTA38 has 12 cylinders (V12) with unit injectors that give good fuel economy and low emissions. The air intake is turbocharged. Dry exhaust manifold with water shielding. High torque gives good response when maneuvering and low rpm reduces noise and vibration levels. 24-volt electrical system with Nogva Motor Computer monitoring system. The K-Series has been on the market for over 25 years and has shown that it is reliable and durable in tough marine environments.
Standard version configured for keel cooling.

Model
Effect 50 Hz
Effect 60 Hz
Rating
Emission
Leaflet
Drawing
KTA38-DM1
880 kW
970 kW
IMO Tier II

Technical details
Number of cylindersV12
Engine type4-cycle
Displacement38 liter
Bore and stroke159 x 159 mm
Compression ratio15:1
AspirationTurbocharged
InnsprøytingUnit injector
Weight (dry)4218 kg
