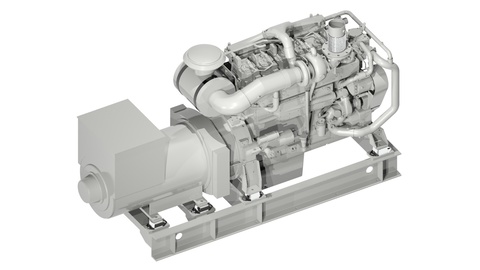

QSK19-DM
433 - 563 kW
> Common Rail Fuel System
> Water cooled exhaust manifold
> Low noise and vibrations
QSK19 has 6 cylinders in line with Modular High Pressure Common Rail Fuel System, which provides good fuel economy and low emissions. The air intake is turbocharged. Water cooled exhaust manifold lowers the surface temperature of the engine and ensures reliable operation. Low rpm reduces noise and vibration levels. 24-volt electrical system with Nogva Motor Computer monitoring system. The Q-Series was launched in 2005, designed to meet current and future stringent environmental requirements.
Standard version configured for keel cooling.
|
Model |
Effect 50 Hz |
Effect 60 Hz |
Rating
|
Emission |
Leaflet |
Drawing |
|
QSK19-DM |
433 kW |
563 kW |
IMO Tier II |
 |
|
Technical details
| Number of cylinders | 6 |
| Engine type | In-line, 4-cycle |
| Displacement | 18,8 liter |
| Bore and stroke | 159 x 159 mm |
| Compression ratio | 15:1 |
| Aspiration | Turbocharged |
| Fuel system | High pressure common rail |
| Weight (dry) | 2200 kg |
