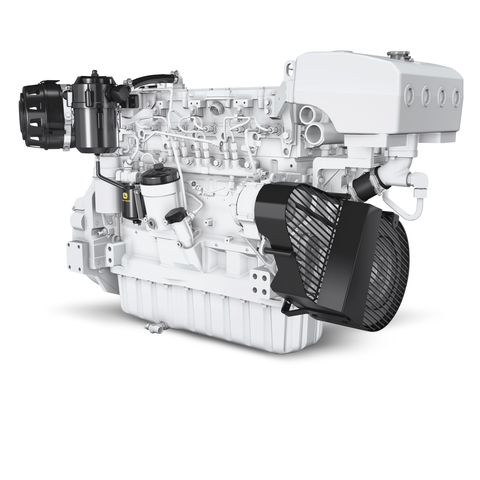

6090AFM
285 - 425 hp
> Water cooled exhaust manifold
> Common Rail Fuel system
> Heat exchanger or keel cooling
> High torque
> Low RPM
6090AFM75 is a modern common rail engine optimized for low emissions and low fuel consumption. The engine has a water cooled turbocharger and exhaust manifold, the charge air cooler is freshwater cooled and this results in low surface temperatures for reliable operation. High torque provides good response when maneuvering. 24 volt electrical system with Nogva Motor Computer monitoring system.
AFM-range is turbocharged and aftercooled, air-to-coolant. Can be delivered with heat exchanger or keel cooling.
|
Model |
Effect |
Engine rpm |
Rating |
Emission |
Leaflet |
Drawing |
|
6090AFM75 |
285 hp |
2100 rpm |
Tier 2 |
 |
| |
|
6090AFM75 |
325 hp |
2200 rpm |
Tier 2 |
|
| |
|
6090AFM75 |
375 hp |
2300 rpm |
Tier 2 |
|
| |
|
6090AFM75 |
425 hp |
2400 rpm |
Tier 2 |
|
|
Technical details
| Displacement | 9 liter |
| Number of cylinders | 6 in-line |
| Bore and stroke | 118 x 136 mm |
| Compression ratio | 16:1 |
| Fuel injection | High pressure common rail |
| Aspiration | Turbocharged and aftercooled |
| Cooling system | Heat exchanger or keel cooling |
| Weight (dry) | 1011 kg |
