6135SFM
425 - 750 hp
> Water cooled exhaust manifold
> Unit injector
> High torque
> Low RPM

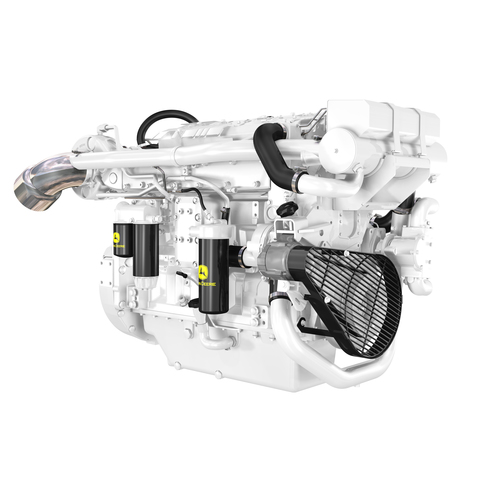

6135SFM85 is a modern common rail engine optimized for low emissions and low fuel consumption. The engine has a water cooled turbocharger and exhaust manifold, the charge air cooler is seawater cooled and this results in low surface temperatures for reliable operation. High torque provides good response when maneuvering. 24 volt electrical system with Nogva Motor Computer monitoring system.
SFM-range is turbocharged and aftercooled, air-to-seawater. Delivered with heat exchanger.
|
Model |
Effect |
Engine rpm |
Rating |
Emission |
Leaflet |
Drawing |
|
6135SFM85 |
425 hp |
1800 rpm |
Tier 3 |
 |
| |
|
6135SFM85 |
500 hp |
1900 rpm |
Tier 3 |
|
| |
|
6135SFM85 |
575 hp |
2000 rpm |
Tier 3 |
|
| |
|
6135SFM85 |
650 hp |
2100 rpm |
Tier 3 |
|
| |
|
6135SFM85 |
750 hp |
2200 rpm |
Tier 3 |
|
|
Technical details
| Displacement | 13 liter |
| Number of cylinders | 6 in-line |
| Bore and stroke | 132 x 165 mm |
| Compression ratio | 15.3:1 |
| Fuel injection | Unit injector |
| Aspiration | Turbocharged and aftercooled |
| Cooling system | Heat exchanger |
| Weight (dry) | 1426 kg |
