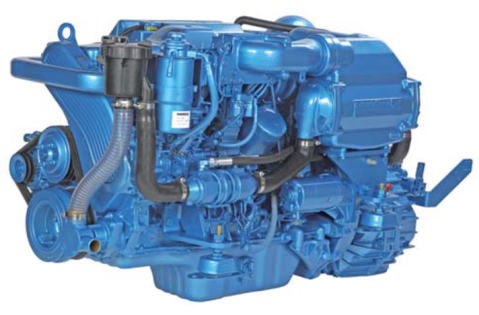

6.420 TDI
320 hp
> Toyota base engine
> Big displacement
> High torque
> Turbo compressor & Intercooler
> Direct fuel injection
> 4 valves per cylinder
> 2 balance shafts
The design of the 6.420 TDI is based on the 6 cylinder diesel engine which is used and tested on the Land Cruiser 4x4. The robustness of its engine block and its cast iron cylinder head as well as the effi ciency of the different heat exchangers that compose the marinization developed by Nanni Diesel give you the assurance of quality, reliability and longevity that have already convinced many renowned boat builders.
Technical details
| Rated power | 320 / 235,5 (hk / kW) |
| Rated rpm | 3600 o/min |
| Number of cylinders | 6 in-line |
| Displacement | 4.2 liter |
| Bore and stroke | 94 x 100 mm |
| Compression ratio | 15,7:1 |
| Combustion system | Direct |
| Intake | Turbo compressor & Intercooler |
| Cooling | Closed cooling with heat exchanger |
| El. equipment / Alternator | 12V /100A eller 24V / 55A |
| Transmission | Hydraulic gearbox |
| Engine Max Install. Angle | 7° (dynamic) |
| Dry weight with TTM50A | 469 kg |
| Certifications | EU-RCD, BSO |
