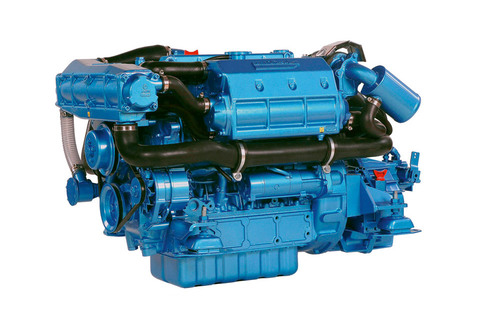

N4.115
115 hp
> Optimized cooling system
> E-CDIS injection system
> Turbo compressor & Intercooler
> 2 balances shafts
> Big displacement
Eco-friendly and robust 4-cylinder diesel engine based on the Japanese Kubota engine, injection system (E-TVCS) and the combustion chamber is optimized for reduced emissions and fuel consumption. Technological innovations from Kubota also provides the lowest noise and vibration level. Nanni's long experience in marinisation of this type of engine seals Nanni N4.115 as a quality product
Technical details
| Rated power | 115 / 84,6 (hp / kW) |
| Rated rpm | 2600 |
| Number of cylinders | 4 in-line |
| Displacement | 3,8 liter |
| Bore and stroke | 100 x 120 mm |
| Compression ratio | 21,8:1 |
| Combustion system | Direct (E-CDIS) |
| Intake | Turbo compressor & intercooler |
| Cooling | Closed cooling with heat exchanger |
| El. equipment / Alternator | 12V /100A or 24V / 55A |
| Transmission | Mechanical or hydraulic transmission |
| Engine Max Install. Angle | 7° (static) |
| Dry weight with TM345A | 378 kg |
| Certifications | US-EPA, EU-RCD, BSO |
